- Size: 530CBM
- Place of Origin: HEBEI,CHINA
- Brand Name: XINYE
- Model Number: 530CBM
- Weight: 1000000.000 kg

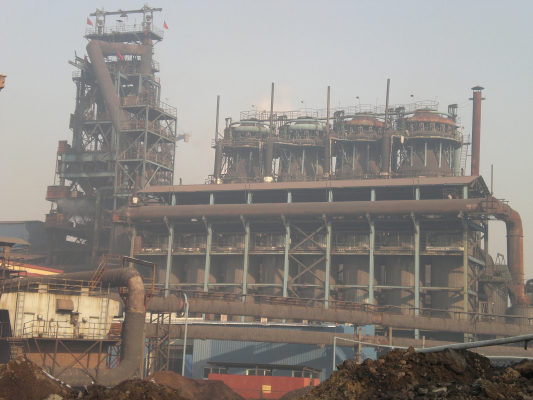

Brief Introduction of 530m3 BF
450m3BF was starting construction in 2005,and put into operation at Sept. 18 2003,design production capacity is 550,000tpa,actual production capacity of hot metal is 600,000tpa, and it was modified into 530m3 blast furnace in 2010 because market requirement, at present,due to China domestic industry police to be regulated,this blast furnace stop production in 2013, each system equipment is under good condition.
This blast furnace was designed by Hebei Xinye Engineering and Technology Co.,Ltd..
1. Inner Mode of Blast Furnace
Table 1 Schedule of Inner Mode Dimension of BF
No. | Item | Code | Unit | Parameter |
1 | Useful volume | Vu | m3 | 530 |
2 | Furnace hearth Dia. | d | mm | 5900 |
3 | Furnace Belly Dia. | D | mm | 6900 |
4 | Furnace throat Dia. | d1 | mm | 4700 |
5 | Effective height | Hu | mm | 19270 |
6 | Height of rest iron layer | h0 | mm | 1200 |
7 | Height of furnace heart | h1 | mm | 3100 |
8 | Height of furnace bosh | h2 | mm | 2800 |
9 | Height of furnace belly | h3 | mm | 1400 |
10 | Height of furnace stack | h4 | mm | 10300 |
11 | Height of furnace throat | h5 | mm | 1670 |
12 | Furnace bosh angle | α | degree | 79º52 ′ |
13 | Furnace stack angle | β | degree | 83º54 ′ |
14 | Hu/D |
|
| 2.79 |
15 | Tuyere Nos. | f | Piece | 14 |
2. Main Equipment of BF’s Ore Stored ( Coke ) Silo
⑴ Oscillation Screen for Ore used 16sets
Mode: BTS1430
Screen area: 1400×3000mm
Disposal amount: 150t/h
Swing: 6±1mm
Motor power: 2×5.5kw
⑵ Coke Oscillation screen 4sets
Mode: BTS1426
Screen net area: 1400×2600mm
Disposal amount: 150t/h
Swing: 8±1mm
Motor power: 2×5.5kw
⑶ Return coke screen 1set
Mode: TZS-60-150
⑷ Main belt of ore B=800mm V=2.0m/s
Main belt of coke B=800mm V=2.0m/s
Main belt of ore return B=500mm V=1m/s
Main belt of coke return B=500mm V=1m/s
3. Main Equipment of Charging System
Charging system adopts double skip cars with skew bridge for charging and bell-less type ( bunch bins) top charging equipment. Main equipment include skip cars、skip windlass、rope wheel、bell-less ( bunch bins) top charging equipment、probe and probe’s windlass、balance pressure and discharging pressure system、top hydraulic station、top centralized grease lubrication station and maintenance crane equipment etc.
⑴ Skip car
Useful volume of Skip car 3.8m3×2
Main rail interval 1220mm
Vice rail interval 1430mm
⑵ skip car windlass
Max. capacity of windlass 12t
Max. liftup speed 2.44m/s
Drum dia. 1800mm
Max. stroke of steel rope ~80m
Steel roper dia. 32.5mm
Motor power of windlass 200kW, voltage 380v
Motor nos. of windlass 1set
⑶ Rope wheel
Rope wheel dia. φ1800mm
⑷ Bell-less (bunch bins) top charging equipment
Mode WZG-C-400 bell-less top
Total height of complete set of equipment (from top flange to upper side of receiving material hopper)≯12.5m
Useful volume of receiving hopper 13m3
Useful volume of charge bin 16m3
Length of charge distribution chute 1.6m
Rotary speed of charge distribution
chute (positive and negative rotation) 8.82r/min(max)
titling angle of chute 5°~40°(max. 0°-50°)
titling speed of chute 8°/s
Distribution mode single ring、multi-rings、spiral and positioning distribution,automation and manual flexibly switchover
Transmission mode of each valve Hydraulic transmission
Nitrogen adopted for balancing pressure on top bins
Water cooling, nitrogen sealing are adopted in the distributor of top bell-less equipment.
⑸ probe and probe windlass
Probe mode vertical soft probe 2sets
Probe windlass 2sets
Liftup speed of probe 0.8m/s
Max. measure scope 5m
Drum dia. Of probe 271mm
Steel rope dia. 8.8mm
Motor power of probe windlass 5kw
Motor nos. of probe windlass 1set (each set probe)
⑹ balance pressure system
Balance pressure valve φ200×2
Relief valve φ300×2
4. Furnace Proper Cooling
Full cooling wall structure is adopted
There are different hot load in different position of blast furnace,therefore, different positions shall be adopted by different material and different structure mode cooling walls:
Low Chrome cast iron cooling wall with plain surface shall be adopted for furnace
hearth;
spheroidal graphite iron cooling wall with plain surface is adopted for the tuyere;
furnace belly、furnace bosh、lower part of furnace stack are adopted by three sections copper cooling wall;
upper and upper of furnace stack adopts spheroidal graphite iron embedded brick with
single layer water cooling pipe as cooling wall;
The top of furnace stack, namely lower of furnace throat brick adopts buckle-down
mode plain surface cooling wall with material of spheroidal graphite iron.
5. Gravity Dust Remover
The shell DN8000mm of the gravity dust remover,upright pipe dia. of entering dust remover is DN2300mm,in order to ensure isolating BF from dust remover when blast furnace damping down, one φ1800mm coal gas breaking valve is installed on upper of dust remover,and operated by one set of electric windlass. Moreover. One φ200mm relief valve and one φ400mm relief valve are installed on top of gravity dust remover,and operated by electric windlass,to provide BF for releasing coal gas when BF is damping down for long term. Dust content is low down from 40g/Nm3 to 6~12g/Nm3 after crude gas is de-dusted by primary dedusting,and then delivery to purifying facility of bag dust remover for fine dedusting.
Dust damping unloading machine is installed under lower end of tapered body of dust
remover .
6. Hot Blast Stove
Four sets of cyclone top combustion hot blast stove are equipped
(1)combustion-supporting blower
Two sets of supporting-combustion blowers are totally equipped in supporting- combustion fan room,one work and one standby. Mode of blower:9—26NO16D,
Blast capacity:52392m3/h,
Wind pressure:6884pa,
Motor mode:Y355M1—6,motor power:160KW
(2)heat exchanger
Tube Mode Heat Exchanger is used for preheating supporting air
Table 2 Main Performance of Heat Exchanger
No. | Name | Unit | Value |
1 | Fume flow | Nm3/h | 100000 |
2 | Average Temperature of Fume at Entry | ℃ | 250-300 |
3 | Average Temperature of Fume at Exit | ℃ | 160 |
4 | Flow of Support-combustion Air | Nm3/h | 40000 |
5 | Temperature of Support-combustion Air at Entry | ℃ | 20 |
6 | Temperature of Support-combustion Air at Exit | ℃ | 150 |
7. Coal Pulverized Injection System
(1) Coal Grinder
Mode:HRM1900M,
Max. charging size <40mm
Production capacity:38-42t/h
Hatschek grindability coefficient :≥55
Air temperature of entering grinder:<450grade℃
Air temperature at exit: 70-95℃
Water contained in material of entering grinder:<10%
Pressure difference of inlet and outlet:5000-6000Pa
(2)powder receiver
Disposal amount: 9000m3/h
Filter area : 2500m2
Purified filter air: 0.7-0.8m/min
Density at entry: <1000g/Nm3
Density at exit: <50mg/Nm3
Temperature at entry:<120℃
Pressure of air supply:0.5-0.7Mpa
8. Bag Mode Dust Remover of Blat Furnace Gas
Box Nos. set 8
Filtering bag nos. of each box piece 238
Filtering bag size Φ4×L φ120×6000
Filtering area of each box m2 538
Filtering load adopted by design Nm3/m2·h 35
Filtering gas amount of each box Nm3/h 18830
Gas disposed amounted to Nm3/h 150640
9. Blast Furnace Blower
Blower model: AV45-12 full rest vane adjustable and axial blower
Inlet air amount: 1760m3/min(E点)
Inlet pressure: 0.093Mpa(E point)
Inlet temperature: 8.2℃ (E point)
Outlet pressure: 0.034Mpa(E point)
Work rotary speed:7050r/min
Axial power: 4980kw
Motor model: YGF800-4
Rated power: 6500KW
Rated voltage: 6000V
Rated rotary speed:1486r/min
Insulation grade: F
Cooling mode: upper water cooling
10. Dedusting
Equipped with ore silo dedusting and cast house dedusting
11. Water Supply and Drainage
Circulating water supply group pump with normal pressure are equipped with three sets of 500S59 model water pump (Q=1620-2020-2340m3/h,H=67-59-49m,N=450KW,n=920r/min,U=6000V,matched with motor of Y450 6-6),two work and one standby.
High pressure circulating water pump block is equipped with two sets of 250D-60-2 model with conveniently dismantled mode centrifugal pump (Q=450 m3/h,H=120m,N=200KW,n=1450 r/min,U=450 V,matched motor Y315L2-4) one work and one standby.
12. Power Supply and Distribution
Main electrical equipment models:
(1) S9-1600---6/0.4-0.23kV power transformer:S9;
(2) High voltage switch cabinet (HVP):manual handling car mode KYN;
(3) Low voltage distribution panel (PCC):drawing out mode MNS,IP43;
(4) power distribution box/panel on site (PDB/PDP):outdoor metal enclosed self-stand mode,IP54.
Transmission main equipment models:
(1) Motor control panel (MCC):drawing out mode MNS,IP43;
(2) Interface of relay panel (IRP):metal enclosed self-stand mode,IP43;
(3) AC frequency conversion speed control device:digital mode,IP43;
(4) operation table/panel (CD/CP):metal enclosed mode,IP44;
(5) local operation box (SCB):outdoor metal enclosed rain-proof and dust-proof mode,IP54.
